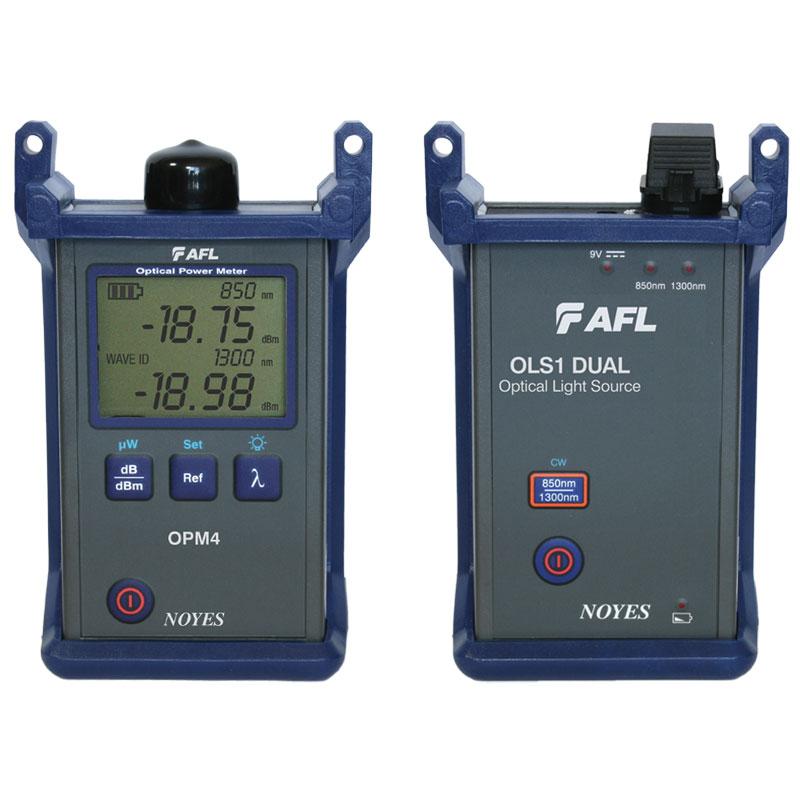

MLP4-2 Multimode Loss Test Kit with Wave ID
MLP4-2 Multimode Loss Test Kit: Cost effective tool for link loss measurements and certification testing. The MLP4-2 combines the OLS1-Dual…
AFL · Optical Loss Test Sets
C880 Certification Optical Loss Test Kit
The NOYES C880 is a fiber optic certification Optical Loss Test Set with Touch and Test® an intuitive visual user interface which simplifies the user experience, reduces training time and testing errors enabling even…
| Manufacturer | AFL |
|---|---|
| Product code | C880 |
| SKU | 53839000000924337 |
| Description | Certification Test Kit, Quad |
Overview
The NOYES C880 is a fiber optic certification Optical Loss Test Set with Touch and Test® an intuitive visual user interface which simplifies the user experience, reduces training time and testing errors enabling even novice to get the job done accurately. With Tier 1 testing tools including OPM, OLS, VFL and end-face inspection capability the C880 is a compact solution for fiber network owners and installers. Comes w TRM™ reporting software for reports compliant to TIA/ISO guidelines
Features
- Hand-held, 0.9 kg (2 lb)
- Inspection capable with the DFS1 Digital FiberScope
- Integrated OPM, OLS, and VFL (650 nm)
- OLS sources: LED - 850/1300 nm; Laser - 1310/1550 nm
- Dual-wavelength certification Pass/Fail
- Two fibers bi-directional and single fiber testing
- >8 hours battery life or AC power
- Touch and TestTM user interface
- TRM® (Test Results Manager) reporting software
- Internal (1000s tests) and USB storage
- USB host and function ports
- Available in seven languages
Applications
- Tier 1 testing of premise networks
- Bi-directionally measure loss and length of fibre links
- Save time simultaneously testing two fibres at two wavelengths
- Verify polarity
- Certify SM and MM networks to industry standards (ISO/TIA/EN) and applications
- Find faults using integrated Visual Fault Locator
- Create and test to user defined rules
- Review Pass/Fail feedback after each test
- Review fibres by cable and retest fibre pairs if needed
- Create professional certification reports
Downloads
Please feel free to share or download any of the provided data sheets.
C880 Certification Optical Loss Test Kit data sheetPDF · 678 KB · AFLDownloadAlso in Optical Loss Test Sets
View the Optical Loss Test Sets range
Test Port Adaptors
- OFL280, OFL250 series handheld OTDRs
- M200 series handheld OTDRs
- M700, M650, C850 series compact OTDRs
