Domaille Engineering LLC · Adhesive Curing Ovens

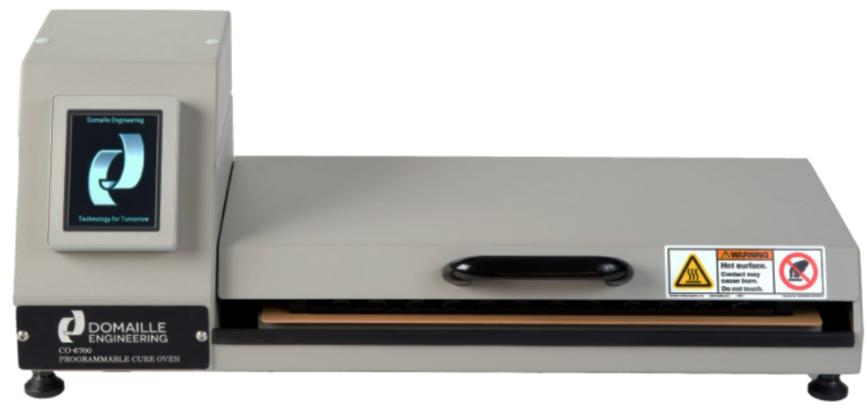

Curing Oven With Touch Screen

🗗 Domaille - Universal Cure Oven The Universal Cure Oven with high resolution 320X240 colour user interface allows more control of your curing processes.

Product details
Manufacturer	Domaille Engineering LLC
Product code	CO-6700 CO-6800
SKU	53839000009588049
Description	Curing Oven, ferrule, 24xMT, 48xFC/SC/ST/LC, 12xPRIZM, touch screen display/control

Overview

🗗 Domaille - Universal Cure Oven

The Universal Cure Oven with high resolution 320X240 colour user interface allows more control of your curing processes. Designed to maximise productivity when curing epoxy on single and multi-fibre connectors. It utilises a modular carrier tray for efficient assembly and loading of up to 24 MT connectors or 48 single fibre connectors per batch.

Features

Specifically designed for MTP/MPO connector epoxy curing with the tightest thermal pattern in the industry
New user interface touchscreen
Utilises carrier trays for EZ loading and maximum productivity, cures in either horizontal or vertical position.
Audible alarm
Multiple modes: temp. hold, timed, twin timer and step ramp heat profiling
Password protect capabilities
Multi-Lingual function
Maximum temperature 150°C
Celsius/Fahrenheit option
Expansion capability for custom requirements (as requested)
Available in 120v or CE Rated 240v configuration
Multiple tray options for additional connector styles
