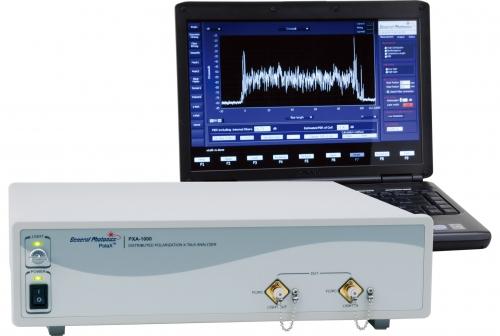

Distributed Polarisation Crosstalk Analyser - PolaX™
The Distributed Polarisation Crosstalk (X-Talk) Analyser (PXA-1000) is an enhanced version of a white light interferometer designed to…
General Photonics · Polarisation Instruments

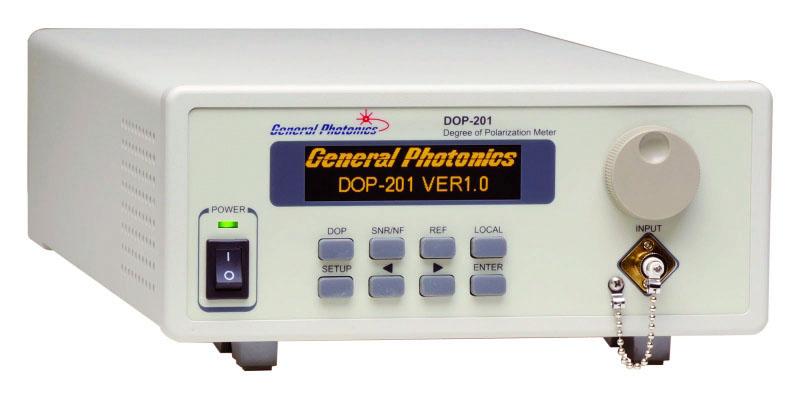

Degree of Polarisation Meter
🗗 General Photonics Model DOP-201 Degree of Polarisation Meter Demonstration Using a patented maximum & minimum search technique (see page 182 for details), the DOP-201 measures and displays the Degree of Polarisation…
| Manufacturer | General Photonics |
|---|---|
| Product code | DOP-201 |
| SKU | 53839000005121083 |
| Description | Polarisation Meter, degree of polarisation |
Overview
đź—— General Photonics Model DOP-201 Degree of Polarisation Meter Demonstration
Using a patented maximum & minimum search technique (see page 182 for details), the DOP-201 measures and displays the Degree of Polarisation (DOP) of a light source in real time with high accuracy and wide dynamic range.
Features
- Rapid measurement
- DOP wavelength independent
- High accuracy
- Front panel real time display
- Analog output
Applications
- Depolariser manufacturing and QC
- Fibre gyro coil characterisation
- ASE & SLED source characterisation
- Raman amplifier block manufacturing
- ROADM manufacturing
- Amplifier noise figure measurement
Downloads
Please feel free to share or download any of the provided data sheets.
Degree of Polarisation Meter data sheetPDF · 201 KB · General PhotonicsDownloadAlso in Polarisation Instruments
View the Polarisation Instruments range

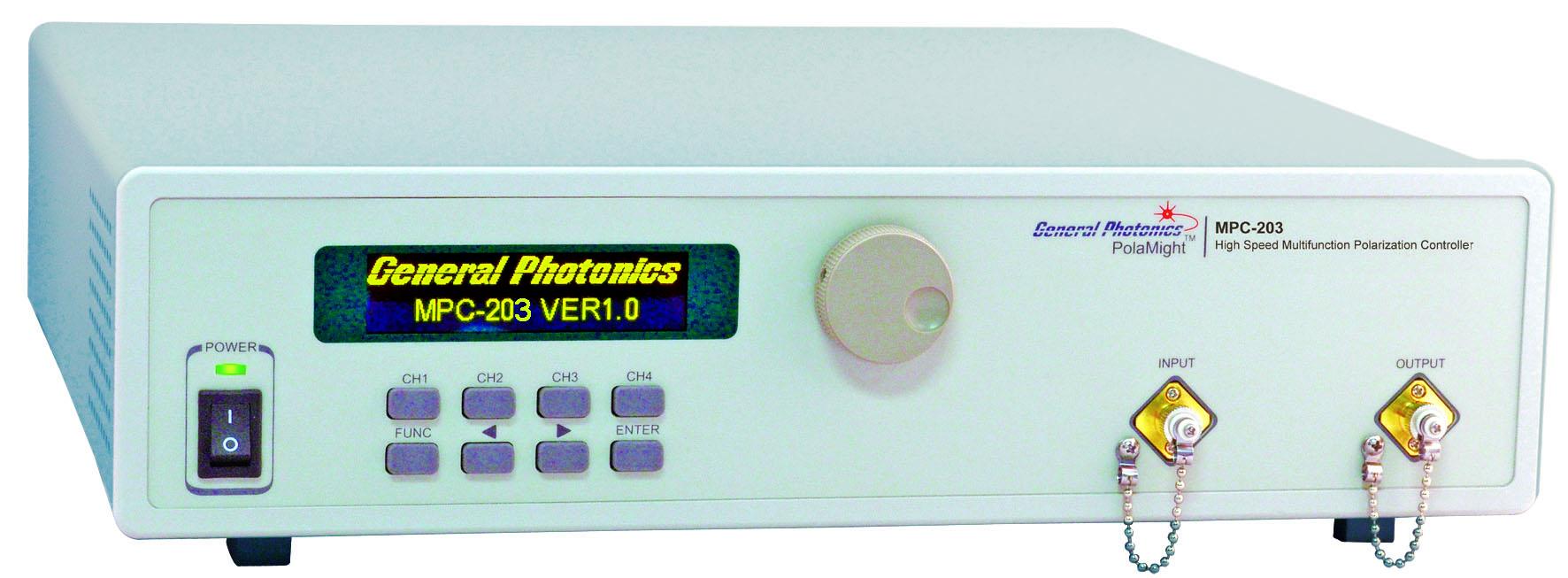

High Speed Multi-Function Polarisation Controller
