Electronic Film Production System Over Fibre Powered By LEMO Hybrid Cable

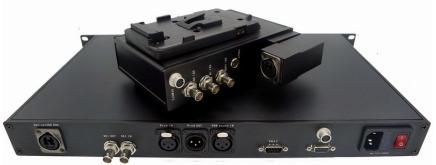

BY-EFP-407 includes a Camera Optic Adaptor and a Optic Base Station.

Product details
Manufacturer	Beyond Opto
Product code	BY-EFP-407
SKU	53839000005638059
Description	Electronic Film Production System, to fibre, powered by LEMO hybrid cable

Overview

BY-EFP-407 includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Sony or Panasonic Remote control data, TC/BB/Genlock, intercom(Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), tally(One colour or two colours can be selected). Remote camera power supply (14VDC up to 150 Watts).The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.

Features

Handle all Pathological patterns
Automatic cable equalisation to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
300+m on SMPTE hybrid cable
RS422 remote control
Tally LED+/- output or dry Contact Closure optional
V-mount or A-mount battery plate optional
Remote camera power supply (14VDC up to 150 Watts), with insertion detection protection
Priority selection of hybrid cable power supply, with battery charge protection
Lemo SMPTE 304 or Neutrik OpticalCON DUO hybrid connector
