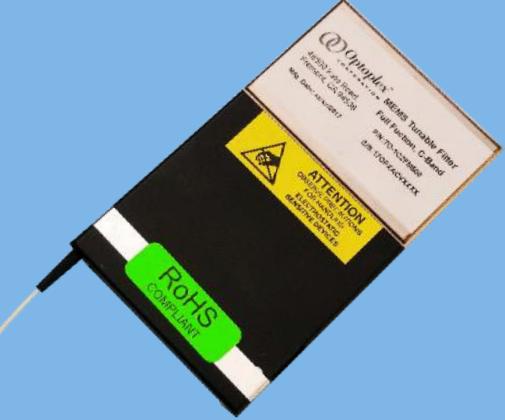

MEMS Tuneable Filter
Optoplex’s MEMS Tuneable Optical Filter is based on a patented micro-optic design with MEMS tuning technology. It is an integrated module…
Optoplex · Optoplex Tuneable Filters

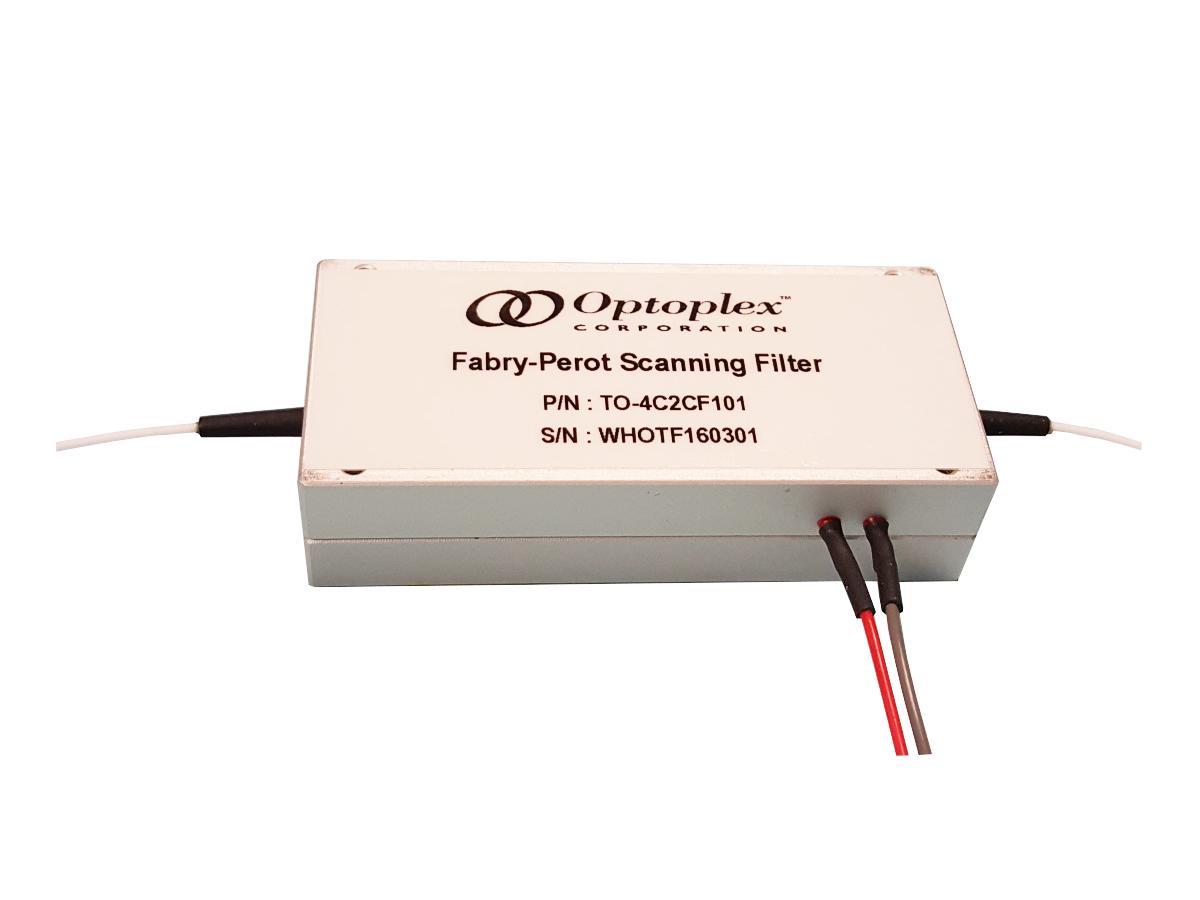

Fabry-Perot Based Scanning Filter
This new type Fabry-Perot Based Scanning Filter (FPSF) is based on Optoplex proprietary fibre optical Fabry-Perot Etalon technology.
| Manufacturer | Optoplex |
|---|---|
| Product code | FOTF- |
| SKU | 53839000005499109 |
| Description | Optical Filter, tuneable, FP, scanning |
Overview
This new type Fabry-Perot Based Scanning Filter (FPSF) is based on Optoplex proprietary fibre optical Fabry-Perot Etalon technology. It offers F-P based scanning filter with central wavelength at 1060nm, 1310nm, 1550nm or other customised wavelength. It can be tuned manually or automatically by scanning over a wide spectral range from 10nm to 100nm with bandwidth from 0.05nm to 1.0nm. FPSF features less than 3dB insertion loss and as high as 1kHz scanning frequency. Its unique high reliability and low insertion loss design presents the most cost-effective solution for OEM application from telecommunication to fibre sensing interrogation.
Features
- Low Insertion Loss:
- Narrow linewidth: 0.05nm
- Compact size
- Wide tuning range: C-, L-, C+L band
- High sweep frequency: >100Hz
- High OSNR: >25dB
Applications
- Remote Sensing
- Telecommunication
- Optical spectrum analyser
Downloads
Please feel free to share or download any of the provided data sheets.
Fabry-Perot Based Scanning Filter data sheetPDF · 547 KB · OptoplexDownloadAlso in Optoplex Tuneable Filters
