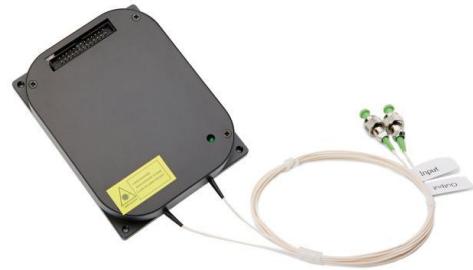

High Power EDFA Module
🗗 Beogold DAS/DVS Solutions Beogold's high-power EDFA offers an output optical power of up to 27dBm and is widely used in optical fibre sensing and communications.
| Manufacturer | Beogold |
|---|---|
| Product code | BG-HEDFA- |
| SKU | 53839000007587172 |
| Description | Optical Amplifier, EDF, module, high power |
Overview
Beogold's high-power EDFA offers an output optical power of up to 27dBm and is widely used in optical fibre sensing and communications. It consists of a 980nm or 1480nm pump laser to provide energy and operates in AGC, ACC or APC mode. It provides high output power, a wide spectral range, and a variable gain range >20dB. It can work across C-band. Using DC+5V/GND as power supply, user-friendly RS232 serial port as communications interface for easy internal configuration. Beogold’s high power EDFA enables real-time parameter monitoring, and remote management and control of the line
Features
- Low noise figure High output power up to 27 dBm
- Flexible control mode High stability and high reliability
- Operating temperature: -20~60℃
- Customisable optical output power and configuration
Applications
- BOTDR
- OTDR system
- LIDAR
- Nonlinear Optics researches Fibre optic sensing
- Air monitoring
Downloads
Please feel free to share or download any of the provided data sheets.
High Power EDFA Module data sheetPDF · 387 KB · BeogoldDownloadAlso in Sensing Modules
View the Sensing Modules range

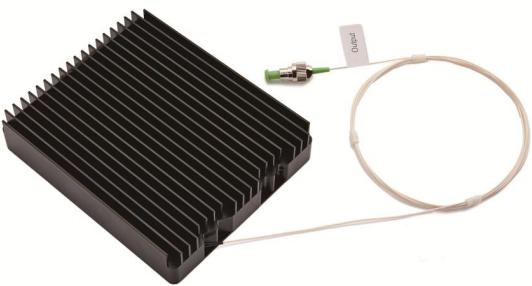

Raman EDFA Module
