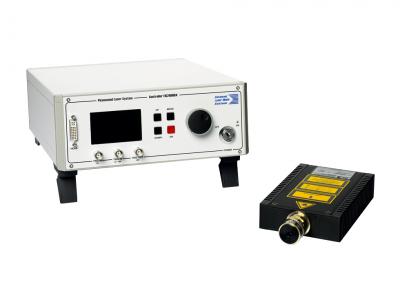

PiLas Laser Diode Controller

Versatile, picosecond pulsed diode lasers designed for both industrial and scientific applications. With more than 10 different wavelengths to choose from and repetition rates from single-shot to 40MHz pulse trains with internal or external trigger, you get an extremely flexible system to fit any application.

PILAS DX operates from pulse-on-demand up to 40MHz in either master or slave mode and it can be easily triggered from an external source.

The gain-switched operation of the semiconductor laser diode allows emission of optical pulses from 45ps to 110 ps pulse width with ultra low timing jitter (<3ps rms). Peak powers range from 60mW to 400mW in the wavelength range from 375nm to 1060nm, depending on the version you choose.
