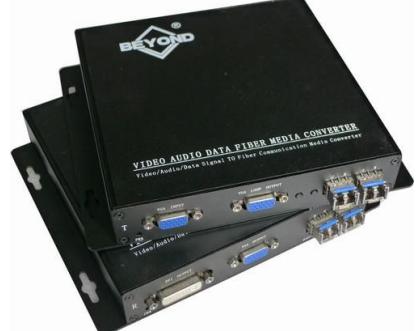

VGA Over Fibre Extender

BY-VGA-296 adopts the advanced the technology digital transform and transmission，the signal is transform to the digital format and transmitted on fibre.Firstly, transmitter transfer the analog signal into the digital format, then it is changed to optical signal in SFP transceiver in the way Electronic-opto， so that the signal is transmitted on Fibre. Receiver transform the optical signal to digital signal after receiving, then transform to the analog VGA signal. BY-VGA-296 can support the formats of VGA、 SVGA、XGA、SXGA、UXGA.VGA converter has Single mode and Multi-mode series. VGA transmitter work with VGA receiver in pairs. The VGA transmitter has loop-out which can contact the local monitor. 4 x LC fibre connectors on transmitter individually transmit R、G、B、CK（R, G, B are Red/Green/Blue three primary colours，CK is the signal of clock). 4 x LC fibre connectors on receiver individually receive RGB/CK. the receiver has 1x VGA output and 1x DVI output，both can work at the same time. when fibre connection between transmitter and receiver, R, G, B, CK fibres can not be intercrossed. if not, they don't work.
