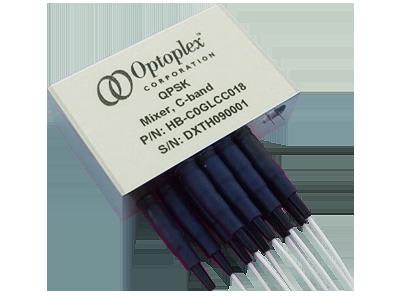

2x8 QPSK Mixer
To be used for optical coherent detection such as DP-QPSK receivers, Optoplex’s ten-port 2x8 Coherent Mixer (aka QPSK mixer) combines the incoming signal with a local oscillator to generate eight light states in the complex-field space.
| Manufacturer | Optoplex |
|---|---|
| Product code | HB-C |
| SKU | 53839000005497003 |
| Description | Optical Mixer, coherent, 2x8 |
Overview
To be used for optical coherent detection such as DP-QPSK receivers, Optoplex’s ten-port 2x8 Coherent Mixer (aka QPSK mixer) combines the incoming signal with a local oscillator to generate eight light states in the complex-field space. The eight light output signals can then be coupled into four pairs of balanced detectors. The block diagram below shows the application of a 2x8 coherent mixer in a DP-QPSK receiver. Since the mixing process is data rate independent, the devices can be used for any data rate in applications such as 40Gb/s or 100Gb/s transmission systems.
Features
- Purely passive (no temperature control)
- Compact size
- Low insertion loss
- Low phase error
- Colorless (wavelength independent)
- Data-rate independent
Applications
- Optical coherent detection
- DP-QPSK demodulation
- Transmission at 100Gb/s (preferred choice of modulation format)
Downloads
Please feel free to share or download any of the provided data sheets.
2x8 QPSK Mixer data sheetPDF · 111 KB · OptoplexDownloadAlso in Optical Phase Demodulators
