4K DVI Extender
BY-DVI-316 is a fibre optic transport system capable of distributing high resolution DVI signals over a single optical fibre with cable lengths up to 300 meters(OM3 MM fibre) or 10km(SM fibre), the resolution up to 4096×2160@30HZ.
| Manufacturer | Beyond Opto |
|---|---|
| Product code | BY-DVI-316 |
| SKU | 53839000005608338 |
| Description | Media Converter, DVI extender, 4K |
Overview
BY-DVI-316 is a fibre optic transport system capable of distributing high resolution DVI signals over a single optical fibre with cable lengths up to 300 meters(OM3 MM fibre) or 10km(SM fibre), the resolution up to 4096×2160@30HZ. Connect the transmitter before use on the monitors will be used, click on the transmitter key, to read and write EDID will be read and stored in the display inside the transmitter, the EDID programming itself so that it is able to adapt to the characteristics of different resolution of display system, make its use more concise, convenient and reliable.
Features
- supports various high definition resolution ratio transmission
- highest can be reach UXGA 1600*1200 or WUXGA 1920*1200@60Hz or HDTV 1080P 1920*1080@60Hz, 2048x1080,2K/4K,
- maximum resolution 4096×2160@30HZ
- Max bandwidth 11Gbps
Applications
- military command and control system
- police command and control system
- traffic management system
- energy and electricity supply industry
- government office
- medical system
- commercial presentation
- multimedia and public utilities
Downloads
Please feel free to share or download any of the provided data sheets.
4K DVI Extender data sheetPDF · 219 KB · Beyond OptoDownloadAlso in Broadcast Media Extenders Converters
View the Broadcast Media Extenders Converters range

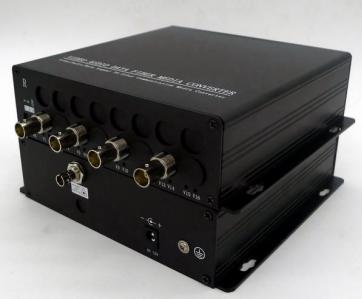

4K SDI To Fibre Optic Extender
