Beyond Opto · Broadcast Media Extenders Converters

Multi-Rate 12G 6G 3G HD SD - SDI Video

12G-SDI to fibre converter is an ideal and economic solution for broadcasting or surveillance applications.

Product details
Manufacturer	Beyond Opto
Product code	BY-SDI-425-
SKU	53839000005863120
Description	Media Converter, 12G/6G/3G/HD/SD -SDI (4K) SDI

Overview

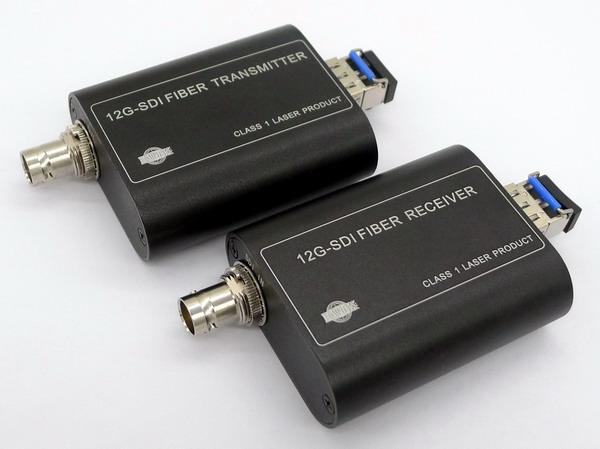

12G-SDI to fibre converter is an ideal and economic solution for broadcasting or surveillance applications. It receives one 12G/6G/3G/HD/SD -SDI electrical input, perfectly converts electrical SDI signal to fibre optic SDI signal. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal. Both transmitter and receiver provide equalising and integrated reclocker at input unit in order to re-construct the signal for consistent quality. Besides, with advanced fibre technology, the 12G-SDI to fibre can easily pass pathological pattern to prove its complete transmission.

Features

1 channel video and audio transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal over optic fibre
Handles pathological pattern
Automatic cable equalisation to ensure signal integrity
With integrated re-clocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
Long transmission capability at least 500M (MM fibre)/10KM(SM fibre)
Terminal block power input for industrial application
Supports hot swapping and hot plugging
Simplex LC/PC single mode optical connection
