EFP System Over Fibre For Datavideo Intercom And Remote

Beyond Opto · Broadcast Fibre Optic HD Camera Systems

Electronic Film Production System Over Fibre For Datavideo Intercom And Remote

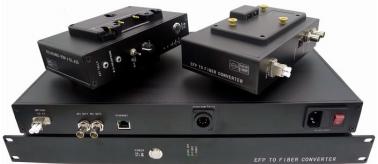

BY-EFP-403 includes a Camera Optic Adaptor and a Optic Base Station.

Product details
Manufacturer	Beyond Opto
Product code	BY-EFP-403
SKU	53839000005638089
Description	Electronic Film Production System, to fibre, Datavideo intercom and remote

Overview

BY-EFP-403 includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the Sony or Panasonic camera to the Base Station, Reverse video（SDI or CVBS, Datavideo Remote control data(Connect Datavideo MULTI-CAMERA CONTROL UNIT MCU-100 ), Datavideo intercom (Camera end be connected Datavideo HP1 Single-Ear Headset, OB end be connected Datavideo ITC-100 Talkback System), tally(2 colours, Camera end be connected Datavideo ext tally lamp TD3, OB end be connected Datavideo ITC-100 Talkback System),reverse CVBS or Genlock is optional. The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM / MM tactical or SMPTE hybrid fibre cable, insuring robust, trouble-free connectivity on any studio or remote production.

Features

Handle all Pathological patterns
Automatic cable equalisation to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
10+Km on single mode fibre or 300m on multi-mode fibre transmission
Mic inputs with mute and pre-amps ,with amplifier for phones
Remote control with Datavideo MCU-100
Intercom and Tally with Datavideo ITC-100 Talkback System
V-mount or A-mount battery plate optional
