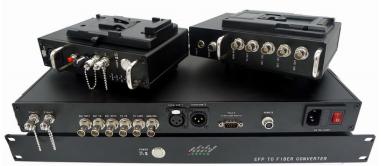

4 Channel Electronic Film Production System Over Fibre For Sony HDW-750

BY-EFP-405 includes 4 Camera Optic Adaptors and 1 Optic Base Station(4 channel). The system transports a 3G/HD-SDI signal from the Sony HDW-730 or HDW-750 series camera to the Base Station, Reverse video(SDI or CVBS),Remote control data(SONY’s 8 pin interface, Connect Sony RCU/RCP RM-B150, RM-B170, RM-B750), Intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), Tally(1 or 2 colours is optional). Genlock signal, blackburst/trilevel sync or Time code is optional. The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM / MM tactical or SMPTE hybrid fibre cable, insuring robust, trouble-free connectivity on any studio or remote production.
