6.0GHz Programmable RF On Fibre Module

RFOptic · RF Over Fibre Systems

6.0GHz Programmable RF On Fibre Module

RFOptic’s palm size analog RFoF modules support up to 6.0 GHz to convert RF signals to optical signals to carry over long distances.

Product details
ManufacturerRFOptic
Product codeRFOF-6.0G
SKU53839000005894202
DescriptionRF Over Fibre System, transceiver, 6.0GHz
Get a quoteAsk a question
Call 01952 511957Data sheet (PDF)

Overview

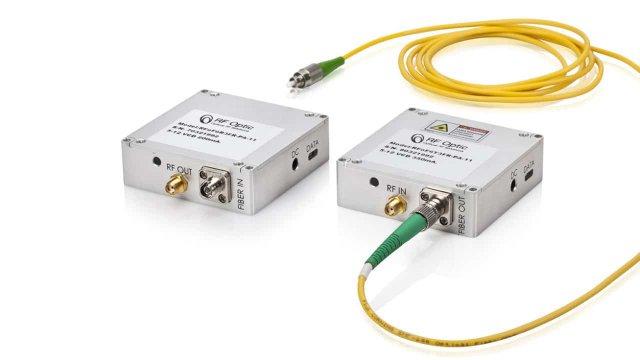

RFOptic’s palm size analog RFoF modules support up to 6.0 GHz to convert RF signals to optical signals to carry over long distances. The Tx unit uses an optical transmitter to convert RF to optical signal. The Rx unit converts it back to RF signal. The two units are connected through the customer’s single mode fibre.

Features

  • Next generation RFoF modules with significant performances improvement.
  • Supports up to 0.5 MGz – 6.0 GHz.
  • Better linearity, excellent gain flatness, and Tx, Rx and link gain control.
  • Noise Figure down to 6 dB with LNA with MDS ~168 dB/Hz for very low incoming signals.
  • Internal micro-controller and optical control enabled by software.
  • End-to-end diagnostics reduce installation and maintenance time, enabled by software.
  • Gain variation S21(fo) of ±1 dB for 90 °C variation, using special algorithms.
  • Remote management by GUI installed on PC.
  • Impedances of 50 Ohm and 75 Ohm.
  • 1310 or 1550nm versions
  • Outdoor enclosure and 1U rack mountable units available

Applications

  • Broadcast
  • GPS
  • Remote Antenna
  • Satcom

Downloads

Please feel free to share or download any of the provided data sheets.

6.0GHz Programmable RF On Fibre Module data sheetPDF · 631 KB · RFOpticDownload
