ConnectorView Plus Connector Inspection Software

ConnectorView Plus software from Lightel is designed for users needing portable automated Pass / Fail software to check for fibre optic connector end face contamination.

Product details
Manufacturer	Lightel
Product code	CVP-
SKU	53839000000924761
Description	Software, CI-1100, pass/fail

Overview

ConnectorView Plus software from Lightel is designed for users needing portable automated Pass / Fail software to check for fibre optic connector end face contamination. Whether you want to improve objective evaluation of connector cleanliness in the field, train others to recognise acceptable standards, or improve documentation, ConnectorView Plus is designed to you save time and improve your accuracy.

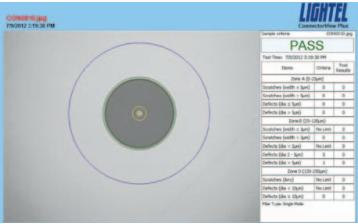

Self-calibrating, and virtually instantaneous, ConnectorView Plus will highlight contamination and defects and create an analysis report. It will capture and save the image together with that pass/fail report. A summary report can also be automatically generated.

Features

Self-calibrating – no need to constantly readjust settings
Single and multi-mode connector settings
Adjustable acceptance criteria – Use the default IEC 61300-3-35 standard or set to your own corporate requirements. Create as many profiles as you need. The criteria used are shown on every report.
Live or frozen connectors can be analysed.
Notes – simple automated analysis reports or include detailed notes and observations.
Summary reports available in Excel or Text file for every saved analysis report
Save only the reports you choose, or save them automatically
Automatically locate the ferrule or manually position it
Install on multiple computers and use with multiple Lightel microscopes.
