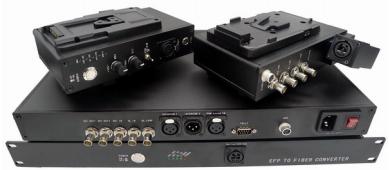

Electronic Film Production To Fibre System For JVC Camera

BY-EFP-418 for JVC includes a Camera Optic Adaptor and a Optic Base Station.

Product details
Manufacturer	Beyond Opto
Product code	BY-EFP-418
SKU	53839000005621243
Description	Electronic Film Production System, To Fibre, JVC Camera

Overview

BY-EFP-418 for JVC includes a Camera Optic Adaptor and a Optic Base Station. The system transports 1 ch 3G/HD-SDI signal from the JVC camera to the Base Station, 1 ch Reverse 3G/HD-SDI, PGM, Genlock or TC/BB, Remote control(Connect a Remote Control Unit RM-LP55/RM-LP57), intercom (camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally (one colour or two colours can be selected), Remote camera power supply (15V DC up to 150 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM tactical or SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.

Features

1 ch forward and 1 ch reverse SDI
Handle all Pathological patterns
Automatic cable equalisation to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
10+Km on single mode fibre transmission
Mic inputs with mute and pre-amps
Headphone with PGM / Intercom volume up or down
Remote control (Connect a Remote Control Unit RM-LP55/RM-LP57)
Tally LED+/- output or dry Contact Closure optional
V-mount or A-mount battery plate optional, Upper battery plate can be changed to heat sink
Genlock or TC/BB are also available
Remote camera power supply (15V DC up to 150 Watts), with insertion detection protection
