NanoSpeed Optical Switches

BBN International supplies Agiltron NanoSpeed 1x1 High Speed (ns) Solid State Optical Switch

The NS high power 1x1 fiber optic switch/on-off modulator is a fast shutter device featuring very low loss, fast response, and high optical power handling. This is achieved using patented non-mechanical configurations with solid-state all-crystal designs, which eliminates the need for mechanical movement and organic materials. The NS fiberoptic switch is designed to meet the most demanding switching requirements of ultra-high reliability, fast response time, and continuous switching operation. The switch is bidirectional. The device can be driven by a cost effective circuit with 12V input voltage and a 0-5 V control signal.

The NS Series 1x1 solid-state fibre optic PM switch connects optical channels by redirecting an incoming optical signal into a selected output optical fibre. This is achieved using a patent pending non-mechanical

configuration with solid-state all-crystal design which eliminates the need for mechanical movement and organic materials. The NS fibre optic PM switch is designed to meet the most demanding switching requirement of ultra-high reliability, fast response time, and continuous switching operation.

BBN International supplies Agiltron NanoSpeed 1x1 Solid State High Speed (ns) Optical Switch

BBN International supplies Agiltron NanoSpeed 1x2 Broadband High Speed (ns) Optical Switch

BBN International supplies Agiltron NanoSpeed 1x2 Solid State Optical High Speed (ns) Switch

The NS Series 1x2 solid-state fibre optic switch connects optical channels by redirecting an incoming optical signal into a selected output optical fibre. This is achieved using a patent pending non-mechanical configurations with solid-state all-crystal design which eliminates the need for mechanical movement and organic materials. The NS fibre optic switch is designed to meet the most demanding switching requirement of ultra-high reliability, fast response time, and continuous switching operation.

The NS Series 1x2 solid-state fiber optic PM switch connects optical channels by redirecting an incoming optical signal into a selected output optical fiber. This is achieved using a patented non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement and organic materials. The NS fiberoptic PM switch is designed to meet the most demanding switching requirement of ultra-high reliability, fast response time, and continuous switching operation.

BBN International supplies Agiltron NanoSpeed 1x2 High Speed (ns) Solid State Optical Switch

The NS Series 1x4 solid-state fibre optic PM switch connects optical channels by redirecting an incoming optical signal into a selected output optical fibre. This is achieved using patented non-mechanical configurations with solid-state all-crystal designs, which eliminates the need for mechanical movement and organic materials. The NS fibre optic PM switch is designed to meet the most demanding switching requirements of ultra-high reliability, fast response time, and continuous switching operation.

BBN International supplies Optosun NanoSpeed 1x4 Solid State High Speed (ns) Optical Switch

BBN International supplies Agiltron, fibre optics, fiber optics, 2x2, nanospeed, nanosecond, optical switch, high speed

The NSP Series switch is controlled by 5V TTL signals with a specially designed electronic driver having performance optimised for various repetition rate.

The NS Ultra-Fast Series fibre optical switch is based on a patented electrooptical configuration, featuring low optical loss and wide temperature operation with built-in compensation. The NS fibre optical switch meets the most demanding switching requirements of continuous operations over 25 years and non-mechanical ultra-high reliability (passed Telcordia and space qualifications). The NS Series switch is mounted on a specially designed electronic driver using a 5V TTL control signal through SMA input and a 25V power supply (wall pluggable).BBN International supplies Agiltron NanoSpeed nanosecond Ultra-Fast 1x1 1x2 2x2 Optical Switch

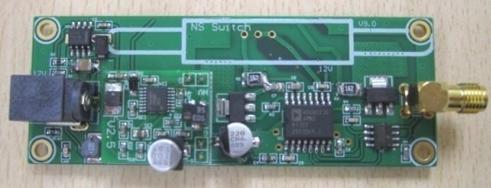

The NS Switch driver provides driving signals for the NS series solid state switches. The push-pull output design ensures fast switching time for both rising and falling edges, and it is especially suitable for driving capacitive loads. The standard driver controls one individual switch. Drivers that control multiple switches also are available. It has a built-in protector (LED flash) against higher repetition rate over 5MHz and can be reset by restarting the power.

BBN International supplies Agiltron, fibre optics, fiber optics, 100khz, switch driver, nanospeed

The NS high repetition switch driver provides driving signals for the NS series solid state switches. The push-pull output design ensures fast switching time for both rising and falling edges, and it is especially suitable for driving capacitive switch loads.BBN International supplies Agiltron 300kHz Repetition Rate NanoSpeed Switch Driver

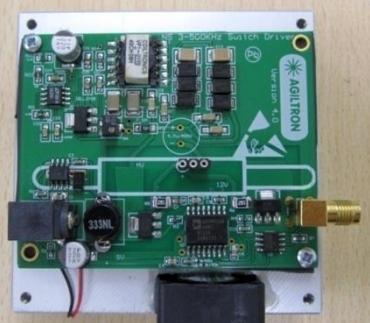

BBN International supplies Agiltron, fibre optics, fiber optics, 500khz, switch driver, nanospeed

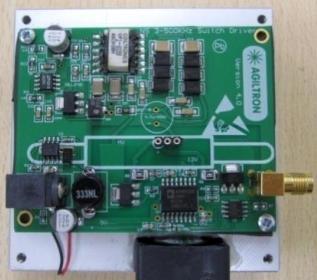

This high repeat rate of driver is designed for driving the Nano-speed Premium (NP) series of fast switches, achieving the high repeat rate up to 1MHz. The push-pull output design ensures fast switching time for both rising and falling edges, and it is especially suitable for driving Features capacitive switch loads.BBN International supplies Agiltron 1MHz Nanospeed Switch Driver
