Origami Femtosecond Laser Modules

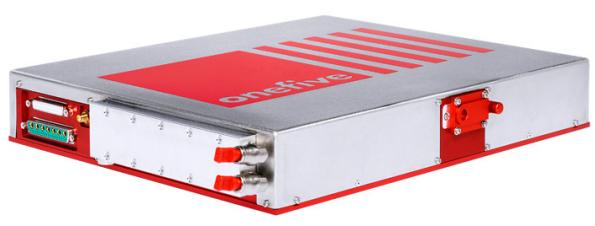

Origami XXP is a high energy and high power femtosecond system based on a simple and compact chirped pulse amplification architecture capable of delivering > 500 μJ pulse energy, 100 W average power with pulse duration below 800 fs. It is based on the unique, ultra-stable and low noise Origami femtosecond seed laser. Origami XXP has been specifically designed for all applications requiring high energy, sub-picosecond pulse duration at a cost-competitive price. The compact all-in-one laser is water cooled and is delivered with full remote control capabilities.

Origami XP is the first all-in-one, single-box, microjoule femtosecond laser available on the market. The laser head, controller and air-cooling system are all integrated in one small and robust package ready for fast integration. Its footprint is so small (280 x 498 x 155 mm) that it even fits into a hand-luggage. The system is based on a simple and compact chirped pulse amplification system capable of delivering > 40 μJ pulse energy, 4 W average power with pulse duration below 400 fs. The laser platform offers excellent pointing stability in time as well as against ambient temperature fluctuations. Origami XP has been designed for easy and cost-effective integration. It is delivered with removable handles and offers full remote control capabilities. A simple

through-hole mounting system and high precision mechanical referencing planes ensure straightforward drop-in installation.

Origami HP is an industrial-grade, cost-effective femtosecond laser that emits transform-limited pulses down to 70 fs duration at high power levels. This laser platform is available at repetition rates above 40 MHz and power levels up to 4 W. The free-space output provides diffraction-limited beam quality and excellent pointing stability. Origami HP is available in infrared, green and UV models. Origami HP is a maintenance-free laser module which comes in a compact, dust-sealed OEM package. It guarantees high repeatability and 24/7 operation.

Origami is an industrial-grade, ultra-compact, mode-locked, femtosecond laser that provides the lowest phase noise and timing jitter on the market. It has been specifically designed for OEM integration. The Origami families of lasers emit transform-limited soliton pulses, providing diffraction-limited beam quality and excellent pointing stability. It is available at various wavelengths and repetition rates. Origami is an air-cooled, maintenance-free laser module packaged in a sealed and robust enclosure allowing for operation in the harshest environments. It guarantees high stability, low drift and 24/7 operation.

The plug & play, add-on module ULTRA-LOW NOISE LASER CONTROLLER is a ultra-low noise current source developed by Onefive to drive its mode-locked laser units with the lowest possible timing-jitter. It can drive the laser pulse train to show a timing jitter of only 400 as over long time [1 Hz – 1 MHz] and even down to 70 as during shorter time [1 kHz – 1 MHz]. It has been developed for high-end synchronization applications.BBN International supplies Onefive ultra low noise laser controller
