Shinho Fusion Splicers

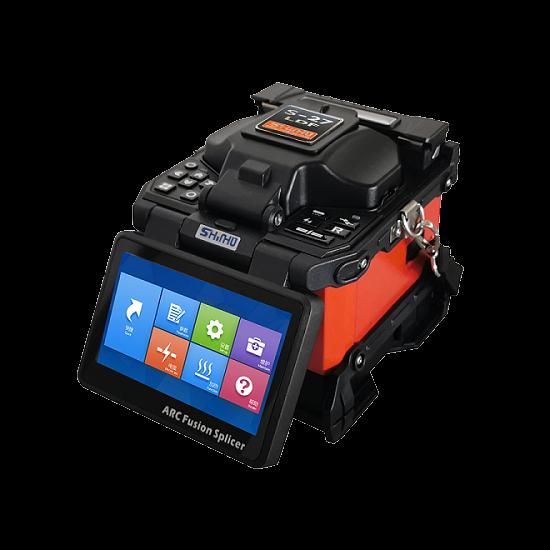

S-27 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~600um) with S-27 Specialty Fiber Fusion Splicer.BBN International supplies Shinho S-27 Portable Large Diameter Fibre Fusion Splicer

• Small, light, long battery life
• 4 motors accurate core alignment
• 250 times magnification of fibre cores
• 7s fast splicing, 26s intelligent heating
• More than 4000 times electrodes discharging
• 4400mAh Li-batery, 220 cycels splicing and heating
• Inductive automatic heater, not heating without fibers
• 3 in 1 multi-function clamps, new waterproof structure
• Apply to bare fibres, drop cables and jumper wires splicing

• 6s for splicing and 26s for heating
• Electrodes discharging more than 4000 times
• USB port for software updating and data records exporting,
• PAS image digital processing system, core to core alignment,
• ARC calibrated by temperature and air pressure automatically,
• 360° rubber armour protects machine from shock, water and dust
• 5800mAh Li-battery, more than 200 cycles splicing&heating
• Multi-function holder clamps, apply to bare fibres, drop cable, pigtails

• Core to core digital alignment
• High definition 5.7' colourful LCD
• PAS image digital processing system
• 360°rubber armour protecting from shock
• Intelligent operation, auto heating and fusing
• Arc calibrated by temperature and pressure parameters
• Various display group, max magnification up to 300X
• 8 seconds typical splicing and 28 seconds heating
• 8800mAh pluggable battery for >250 cycles splicing and heating

🗗 Shinho X-900 Fusion Splicer Operating Procedure

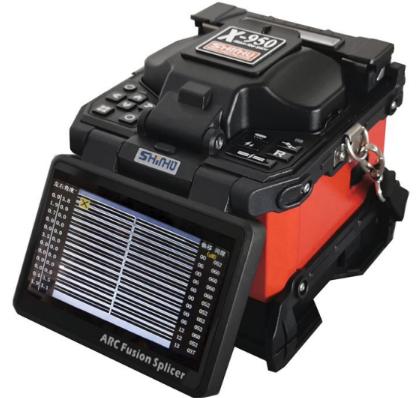

X-950 Ribbon fibre fusion splicer is with the latest accurate fibre alignment technology, it has very stable performance and low fusion loss, it is suitable for different fibre optical projects and various environmental conditions.BBN International supplies Shinho X-950 Ribbon Fibre Cladding Alignment Fusion Splicer

• Handheld, Small, Light
• Industrial standard screen
• Various colours are available
• Core to core digital alignment
• 8s splicing time, 26s tube heating time
• 5800mAh and pluggable Li-battery, Typical 200 cycles
• ARC calibrated by temperature and air pressure automatically
• Apply to bare fibres, indoor cables and jumper wires splicing
